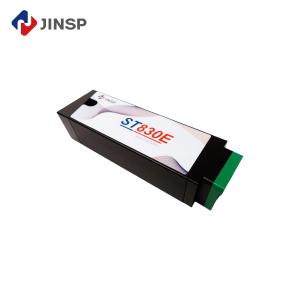

Wavenumber linear Depth Imaging OCT Spectrometer

JINSP ST830E/ST850E series spectrometer is dedicated to the OCT system. It is an important device in the spectral domain OCT (SD-OCT) system, which determines important performance indicators such as the imaging speed and the signal-to-noise ratio (SNR fall-off) of the OCT system.

ST830/850E series spectrum realizes wavenumber linear spatial dispersion through special optical path design and directly realizes equal interval sampling of wavenumber on hardware. The acquired interference spectrum can be directly subjected to FFT without a wavenumber resampling algorithm, which greatly reduces the complexity of data processing and improves the signal-to-noise ratio of the system. In addition, this product also adopts volume phase holographic grating (VPH), which has high efficiency and can reach 110dB signal-to-noise ratio in SD-OCT experimental system (7mW light source power, 120kHz line imaging speed), and obtain high-quality OCT/OCTA in vivo biological image.

Technical Parameters:

Technical Characteristics:

Deep Imaging: Excellent roll-off performance enables imaging at deeper layers.

Wavenumber Linearity:

• Special optical path design allows for equidistant wavenumber sampling on the hardware.
• Direct FFT (Fast Fourier Transform) is possible, significantly reducing data processing complexity.

Fast Processing: The USB3.0 interface allows for a scanning speed of 20-130kHz, making OEM processes
more efficient and straightforward.

High Signal-to-Noise Ratio, High Resolution: Efficient VPH grating, optical resolution approaching the diffraction limit.

Typical Applications:

• Industrial OCT Systems: Metal cutting and welding, Laser oscillation etc;
• Medical OCT Systems: Vascular imaging, Anterior chamber of eye etc;
• Other OCT Systems: Detection of uniformity in multilayer coatings etc

Company Introduction:

JINSP Company Limited has won the National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate and the China Patent Excellence Award, and related products have been obtained has won authoritative awards such as the Geneva International Invention Award, the Beijing New Technology and New Product Certificate, and the "Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award.JINSP is a professional leading solution provider of molecular spectroscopy, particulaly in Roman Spectroscopy for many years.

Our products mostly include:
--UV VIS NIR fiber optic spectrometers;
--Desktop/portable, online Raman analyzers for laboratory or indutrial liquid & gas analysis;
--On-site rapid detectors/identifiers based on Raman technology for drugs, liquid, food safety, explosive & hazardous materials, pharmaceutical industry etc;

FAQ:

Q1: What is the brand name of this OCT Spectrometer?

A1: The brand name of this OCT Spectrometer is JINSP.

Q2: What is the model number of this OCT Spectrometer?

A2: The model number of this OCT Spectrometer is ST830E.

Q3: Where is this OCT Spectrometer made?

A3: This OCT Spectrometer is made in China.

Q4: What are the payment terms for this OCT Spectrometer?

A4: The payment terms for this OCT Spectrometer are T/T and Western Union.
