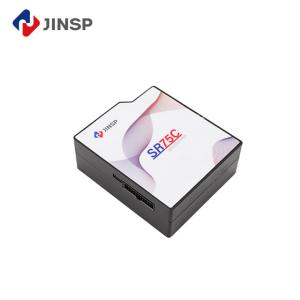

    JINSP SR75C Compact Spectrometer with Sensitive CMOS Detector and Optical Design for High-Performance Measurements

    Ask Lasest Price
    Brand Name : JINSP
    Model Number : SR75C
    Certification : CE
    Price : USD1200- USD1300
    Payment Terms : T/T,Western Union
    Supply Ability : 100 PCS/70-90 days
    Delivery Time : 30-50 working days
    • Product Details
    • Company Profile

    JINSP SR75C Compact Spectrometer with Sensitive CMOS Detector and Optical Design for High-Performance Measurements

    Miniature Fiber Optic Modular Spectrometer JINSP SR75C

    Step into the future of spectroscopy with the JINSP SR75C. This compact device offers lab-grade performance with a 2048-pixel CMOS sensor and broad spectral coverage. The M-shaped optical path and temperature compensation technology ensure consistent, high-resolution outputs even in fluctuating conditions.


    Ideal for LIBS, environmental sensing, and combustion analysis, the SR75C supports USB and serial communication for easy data handling. It’s a cost-effective, reliable instrument for professionals in research, quality control, and environmental monitoring.

    Product Parameters:


    Performance Indicators

    Parameters

    Detector

    Chip Type

    Linear array CMOS, Hamamatsu S11639

    Effective Pixel

    2048

    Pixel Size

    14μm *200μm

    Sensing Area

    28.7mm *0.2mm

    Optical
    Parameters

    Optical Design

    M Type C-T light path

    Numerical Aperture

    0.085

    Entrance Slit Width

    10μm, 25μm, 50μm, 100μm, 200μm
    (customizable)

    Spectrum Range and Resolution

    See model table for details

    Fiber Input Interface

    SMA905, free space

    Electrical
    Parameters

    Integration Time

    1ms-60s

    Signal-to-Noise Ratio

    650:1 (4ms)

    Data Output Interface

    USB 2.0 or serial port

    ADC Bit Depth

    16-bit

    Power Supply

    DC 4.5V to 5.5V (type @5V)

    Operating Current

    < 500mA

    Others

    Operating Temperature

    10°C ~ 40°C

    Storage Temperature

    -20°C ~ 60°C

    Operating Humidity

    90%RH (no condensation)

    Dimensions

    110mm*95mm*40.5mm

    Weight

    310g

    Model

    Spectral Range (nm)

    Resolution (nm)

    Slit (μm)

    SR75C-G02

    510~1000
    (VIS-NIR)

    0.8

    25

    0.5

    10

    SR75C-G04

    SR75C-G06

    SR75C-G07

    SR75C-G08

    SR75C-G09

    SR75C-G10

    200~450(UV)
    330~570(VIS)

    550~750(VIS)

    750-900(NR)

    0.3-0.5

    25

    0.2-0.3

    10

    180~340( UV)
    500~600(VIS)

    0.3

    25

    0.15~0.2

    10

    * Customization available for other ranges

    Typical Applications:

    • Absorption, transmittance, and reflectance detection In ultraviolet, visible, and near-infrared range;
    • Detection of light source and laser wavelength;
    • OEM product module:

    LIBS – analysis of soil and minerals for geological testing and mining-related work

    Online monitoring of water quality and environmental protection - organic matter and oxygen content in water

    Flue gas - Monitoring and identification of flue gas emission components

    Technical Characteristics:

    • Wide Spectral Range Supports customized spectrum range of 200-1000nm
    • High Signal-to-Noise Ratio Low-noise CMOS signal processing circuit, with excellent signal-to-noise ratio
    • High Resolution M-shape C-T optical design

    Company Introduction:

    Solution-Oriented JINSP – Advanced Spectral Detection for Demanding Industries
    Need high-accuracy Raman, FT-IR, or LIBS solutions? JINSP Company Limited brings 17 years of expertise, 200+ patents, and full ISO compliance to deliver certified detection systems. Based in Beijing with a Jiangsu production base, we support clients with CE, ECAC, IP Level, and transport safety certifications. From security checkpoints to lab analysis, JINSP’s technology is globally trusted.

    JINSP SR75C Compact Spectrometer with Sensitive CMOS Detector and Optical Design for High-Performance Measurements
    JINSP SR75C Compact Spectrometer with Sensitive CMOS Detector and Optical Design for High-Performance MeasurementsJINSP SR75C Compact Spectrometer with Sensitive CMOS Detector and Optical Design for High-Performance Measurements

    FAQ:

    Q1: Is the price of this product negotiable?

    A1: Yes, the price of this product is negotiable.

    Q2: What are the payment terms for this product?

    A2: The payment terms for this product are T/T and Western Union.

    Q3: What is the supply ability for this product?

    A3: The supply ability for this product is 100 PCS/70-90 days.

    Q4: How long does it take to deliver this product?

    A4: The delivery time for this product is 30-50 working days.
